Recording

Video Compression

H.265 Pro+/H.265 Pro/H.265/H.264+/H.264

Encoding Resolution

When 1080p Lite mode is not enabled: ,4 MP lite/3 MP/1080p/720p/VGA/WD1/4CIF/CIF;,When 1080p Lite mode is enabled: ,4 MP lite/3 MP/1080p lite/720p lite/VGA/WD1/4CIF/CIF

Frame Rate

Main stream:,When 1080p Lite mode not enabled: ,For 4 MP stream access:,4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) ,For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps,For 1080p stream access: ,1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N),For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N),When 1080p Lite mode enabled: ,4 MP lite/3 MP@15fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N),Sub-stream: ,WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)

Video Bit Rate 32 Kbps to 6 Mbps

Dual Stream Support

Stream Type Video, Video & Audio

Audio Compression G.711u

Audio Bit Rate 64 Kbps

Video And Audio

IP Video Input

4-ch (up to 12-ch) Up to 6 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras

Analog Video Input

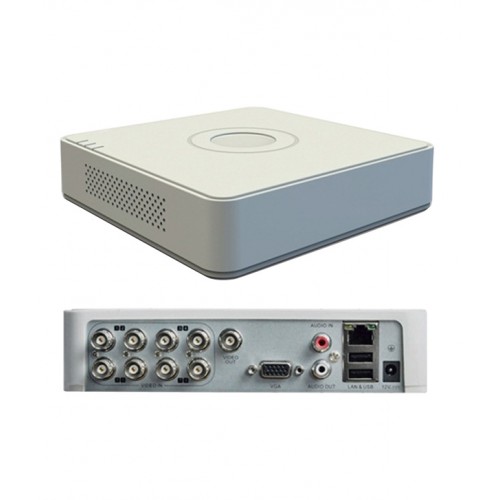

8-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

AHD Input

4 MP, 1080p25, 1080p30, 720p25, 720p30

HDCVI Input

1080p25, 1080p30, 720p25, 720p30

CVBS Input

Support

Audio Input

1-ch, RCA (2.0 Vp-p, 1 KΩ)

Audio Output

1-ch, RCA (Linear, 1 KΩ)

Two-Way Audio

1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)

Synchronous Playback

8-ch

HDTVI Input

4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30, 720p50, 720p60,*: The 3 MP signal input is only available for channel 1 of DS-7104HQHI-K1, channel 1/2 of DS-7108HQHI-K1, and channel 1/2/3/4 of DS-7116HQHI-K1.

VGA/HDMI Output

1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

Network

Remote Connections 64

Network Protocols TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF

Network Interface 1, RJ45 10M/101M self-adaptive Ethernet interface

Auxiliary Interface

SATA 1 SATA interface

Capacity Up to 6 TB capacity for each disk

Alarm In/Out N/A

USB Interface Real panel: 2 × USB 2.0

General

Power Supply 12 VDC

Consumption (Without HDD)

≤ 12 W Working Temperature

-10 °C to +55 °C (+14 °F to +131 °F)

Working Humidity 10% to 90%

Dimensions (W × D × H)

200 × 200 × 45 mm (7.9 × 7.9 × 1.8 inch)

Weights (Without HDD) ≤ 1 kg (2.2 lb)
