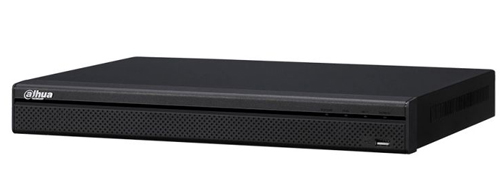

8 Channel Compact 1U H.265 Network Video Recorder
· H.265+/H.264+ codec decoding
· Max 80Mbps incoming bandwidth
· Max 8 channel IP camera inputs
· Internal HDD: 1 SATA III Port, up to 6TB
· Full Metal Casing
· Warranty: 1 Year
System
Main Processor Dual-core embedded processor
Operating System Embedded LINUX
Audio and Video:
IP Camera Input 8 Channel
Two-way Talk 1 Channel Input, 1 Channel Output, RCA
Display:
Interface 1 HDMI, 1 VGA
Resolution HDMI: 3840 ×2160,1920×1080, 1280×1024, 1280×720, 1024×768
VGA: 1920×1080, 1280×1024, 1280×720, 1024×768
Decoding Capacity 1ch@8MP 30fps, 4ch@1080P 30fps
Multi-screen Display 1/4/8/9
OSD Camera title, Time, Camera lock, Motion detection, Recording
Recording:
Compression H.265+/H.264+
Resolution 8MP/6MP/5MP/4MP/3MP/1080P/ 720P/ D1&etc.
Record Rate 80Mbps
Bit Rate 16Kbps ~ 20Mbps Per Channel
Record Mode Manual, Schedule(Regular(Continuous), MD, Stop
Record Interval 1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
Video Detection and Alarm:
Trigger Events Recording, PTZ, Tour, Video Push, Snapshot, and Screen Tips
Video Detection Motion Detection, MD Zones: 396 (22 × 18),
and Tampering
Alarm input N/A
Relay Output N/A
Playback and Backup:
Sync Playback 1/4/9
Search Mode Time /Date, MD and Exact Search
(accurate to second)
Playback Function: Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Backup Selection, Digital Zoom
Backup Mode USB Device/Network
