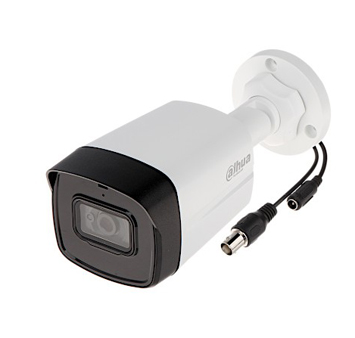

Make Dahua Technology

Manufacturer Dahua Technology Ltd

Model code DH-HAC-B2A21

Series Cooper Series

Chip Inch Size " 1/3 inch

Colour Type Colour / Monochrome

Resolution TVL 1080p TVL resolution

Digital (DSP) Yes

Specialist Types Infrared

Sensitivity lux 0 ~ 0.04 lux

Electrical Specifications Voltage: 12 V DC

Power Consumption: 2.7W

Wide Dynamic Range Yes

Picture Elements HxV 1920 x 1080

Back Light Compensation Yes

Auto Gain Control Yes

White Balance Yes

Electronic Shutter range 1/25 ~ 1/100000s

S/ N (Signal/ Noise) Ratio dB > 65

Signal Mode PAL, NTSC

Video Output 1-channel BNC high definition video output / CVBS video output (Can switch)

Physical Specifications Dimension mm: 70 x 70 x 158

Weight g: 250

Environmental Specifications Operating Temperature oC: -40 ~ +60 C (-40 ~ +140 F)

Protection: IP67

Operating Humidity %: < 95

Additional info

Max. 30fps@1080P

HD and SD output switchable

3.6mm fixed lens (6mm optional)

Max. IR length 20m, Smart IR

IP67, DC12V
