System Overview

Dahua, as a technology leader, is always the first ever developed the

shining new technology in the security industry ,and today we present

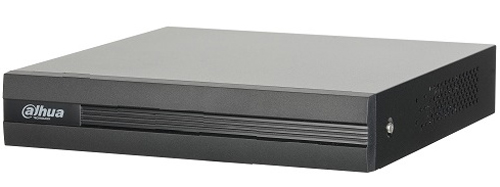

Cooper Series XVR. Designed as a full compatibility product, XVR is able

to provide end user the simplicity of analog system, namely lower system

cost, simple installation and use of existing cable. And with the adoption

of Smart H.265+/H.265, the series improves encoding efficiency, saving on

bandwidth/storage costs. It is ideal for a wide range of civil applications such

as retail store, home protection and so on.

Featuring high performance with attractive costs, the Cooper Series offers a

great solution for users facing budget constraints who both require quality

and performance.

Functions

Smart H.265+

Smart Codec, H.265+ can reduce up to 90% bit rate and storage

requirements compared with H.264 without having to invest in new

cameras.

HDCVI/AHD/TVI/CVBS/IP Auto-detect

The XVR can auto recognize the signal of front-camera without any setting. It

makes operation more friendly and convenient.

High Definition Camera Input

The XVR supports up to 5MP HDCVI camera and 6MP IP camera input.

Coaxial Audio/Upgrade/Alarm

The integrated design can reduce wiring troubles which makes it much more

cost-effective and convenient for installation.

Long Distance Transmission

The HDCVI system supports long distance transmission over coaxial cable

and UTP, max. 700m for 4K/4MP, 800m for 1080P and 1200m for 720P.

Intelligent Video System (IVS)

With built-in intelligent video analytics, the XVR has the ability to detect

and analyze moving objects for improved video surveillance. The XVR

provides optional standard intelligence at the edge allowing detection of

multiple object behaviors such as abandoned or missing objects. IVS also

supports Tripwire analytics, allowing the camera to detect when a predetermined line has been crossed.

Face Detection

It is a typical technology being used in a variety of applications for

searching or identification of individuals.

Smart Search

This function helps you get more motion detect video during a short

time through drawing a region when playback. It is very useful when an

emergency occurs.

Technical Specification

System

Main Processor Embedded Processor

Operating System Embedded LINUX

Video and Audio

Analog Camera Input 16 Channel, BNC

HDCVI Camera 5MP, 4MP, 1080P@25/30fps, 720P@50/60fps, 720P@25/30fps

AHD Camera 5MP, 4MP, 1080P@25/30, 720P@25/30fps

TVI Camera 5MP, 4MP, 1080P@25/30, 720P@25/30fps

CVBS Camera PAL/NTSC

IP Camera Input 16+8CH, each channel up to 6MP

Audio In/Out 1/1, RCA

Two-way Talk Reuse audio in/out, RCA

Recording

Video Compression H.265+/H.265/H.264+/H.264

Resolution 5M-N, 4M-N, 1080P, 1080N, 720P, 960H, D1, CIF

Record Rate

Main Stream: the 1st & 2nd channels 5M-N(1~10fps);

other channels 4M-N/1080P(1~15fps); 1080N/720P/960H/

D1/CIF (1~25/30fps)

Sub stream:CIF/QCIF (1~15fps)

Video Bit Rate 32Kbps ~ 6144Kbps Per Channel

Record Mode Manual, Schedule (General, Continuous), MD (Video detection:

Motion Detection, Video Loss, Tampering), Alarm, Stop

Record Interval 1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Postrecord: 10 ~ 300 sec

Audio Compression AAC(only for the 1st channel), G.711A, G.711U, PCM

Audio Sample Rate 8KHz, 16 bit Per Channel

Audio Bit Rate 64Kbps Per Channel

Display

Interface 1 HDMI ,1 VGA

Resolution

HDMI: 3840×2160, 2560×1440, 1920×1080, 1280×1024,

1280×720

VGA: 1920×1080, 1280×1024, 1280×720

Multi-screen Display When IP extension mode not enabled: 1/4/8/9/16

When IP extension mode enabled: 1/4/8/9/16/25

OSD Camera title, Time, Video loss, Camera lock, Motion detection,

Recording

Network

Interface 1 RJ-45 Port (1000M)

Network Function

HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP,

DHCP, DNS, IP Filter ,DDNS, FTP, Alarm Server, P2P,IP Search

(Supports Dahua IP camera, DVR, NVS, etc.)

Max. User Access 128 users

Smart Phone iPhone, iPad, Android

Interoperability ONVIF 16.12, CGI Conformant

Video Detection and Alarm

Trigger Events Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot,

Buzzer and Screen Tips

Video Detection Motion Detection, MD Zones: 396 (22 × 18), Video Loss,

Tampering and Diagnosis

Alarm input N/A

Relay Output N/A

Playback and Backup

Playback 1/4/8/16

Search Mode Time /Date, Alarm, MD and Exact Search (accurate to

second)

Playback Function

Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File,

Previous File, Next Camera, Previous Camera, Full Screen,

Repeat, Shuffle, Backup Selection, Digital Zoom

Backup Mode USB Device/Network

Storage

Internal HDD 1 SATA Port, up to 6TB capacity

eSATA N/A

Auxiliary Interface

USB 1 USB 2.0 , 1 USB 3.0

RS232 N/A

RS485 N/A

Electrical

Power Supply DC12V/2A

Power Consumption

(Without HDD) <10W

Construction

Dimensions Compact 1U, 260×236×48mm(10.2"×9.3"×1.9")

Net Weight

(without HDD) 0.86kg (1.90lb)

Gross Weight 1kg (2.2lb)

Installation Desktop installation

Environmental

Operating Conditions -10°C ~ +45°C (+14°F ~ +113°F), 10~ 90% RH

Storage Conditions -20°C ~ +70°C (-4°F ~ +158°F) , 0~ 90% RH

Third-party Support

Third-party Support

Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP

Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung,

Sanyo, Sony, Videotec, Vivotek, and more

Certifications

Certifications

FCC: Part 15 Subpart B

CE: CE-LVD: EN 60950-1/IEC 60950-1

CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130,

EN 55024

UL: UL 60950-1
