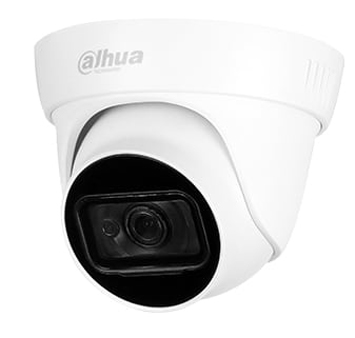

Camera

Image Sensor 1/3″ CMOS

Effective Pixels 2688(H)×1520(V), 4.1MP

Scanning System Progressive

Electronic Shutter Speed PAL: 1/25~1/100000s

NTSC: 1/30~1/100000s

Minimum Illumination 0.03Lux/F2.0, 30IRE, 0Lux IR on

S/N Ratio More than 65dB

IR Distance Up to 80m (262feet)

IR On/Off Control Auto / Manual

IR LEDs 2

Lens

Lens Type Fixed lens / Fixed iris

Mount Type Board-in

Focal Length 3.6mm (6mm, 8mm, 12mm Optional)

Max Aperture F2.0

Angle of View H: 84.8° (52.5°/32.9°/23.6°)

Focus Control N/A

Close Focus Distance 1100mm (2200mm/4000mm/8500mm)

43.3 » ( 86.6 »/157.5 »/334.6 »)

DORI Distance

Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.

DORI

Definition

Distance

Detect 25px/m

(8px/ft)

3.6mm: 80m(262ft)

6mm: 117m(385ft)

8mm: 161m(527ft)

12mm: 250m(820ft)

Observe 63px/m

(19px/ft)

3.6mm: 32m(105ft)

6mm: 47m(154ft)

8mm: 64m(210ft)

12mm: 100m(328ft)

Recognize 125px/m

(38px/ft)

3.6mm: 16m(53ft)

6mm: 23m(77ft)

8mm: 32m(105ft)

12mm: 50m(164ft)

Identify 250ppm

(76px/ft)

3.6mm: 8m(26ft)

6mm: 12m(39ft)

8mm: 16m(53ft)

12mm: 25m(82ft)

Pan / Tilt / Rotation

Pan/Tilt/Rotation Pan: 0° ~ 360°

Tilt: 0° ~ 87°

Rotation: 0° ~ 360°

Video

Resolution 4MP (2560×1440)

Frame Rate 25/30fps@4MP, 25/30fps@1080P, 25/30fps@720P

Video Output 1-channel BNC high definition video output / CVBS video output (Can switch)

Day/Night Auto (ICR) / Manual

OSD Menu Multi-language

BLC Mode BLC / HLC / DWDR

WDR DWDR

Gain Control AGC

Noise Reduction 2D

White Balance Auto / Manual

Smart IR Auto / Manual

Certifications

Certifications CE (EN55032, EN55024, EN50130-4)

FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)

UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

Interface

Audio Interface N/A

Eelectrical

Power Supply 12V DC ±25%

Power Consumption Max 5.2W (12V DC, IR on)

Environmental

Operating Conditions -40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH

* Start up should be done at above -40°C (-40°F)

Storage Conditions -40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH

Ingress Protection &Vandal Resistance IP67

Construction

Casing Aluminium

Dimensions 241.8mm×90.4mm×90.4mm (9.52″×3.56″×3.56″)

Net Weight 0.59kg (1.30lb)

Gross Weight 0.72kg (1.59lb)
